VIAIR Corporation - Heavy Duty Onboard Air System

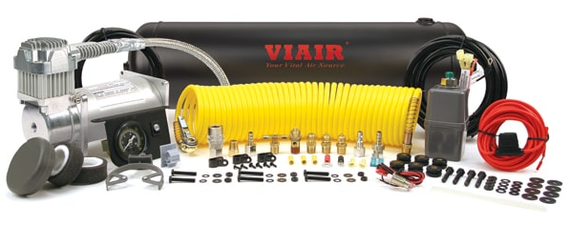

VIAIR’s Heavy Duty Onboard Air System is a pre-packaged compressed air solution that provides a faster 33% duty cycle 400C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires right out of the box. For up to 35" tires.
Fits the following applications:
Universal
Part #: 10005
Specifications:
– 12-Volt
– 2.54 CFM
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 28 Amps
– Ingress Protection Rating: IP67
Features:
– 2.5 Gallon VIAIR Air Tank
– 400C VIAIR Compressor
– 35ft. Coil Hose with Tire Chuck
– 1/4” Quick Connect Stud (F)
– 1/4” Quick Connect Coupler (F)
– Dash Panel Gauge with ON/OFF Switch
– Pressure Switch with Relay (110 PSI on, 145 PSI off)
– Reducer: 1/8” (F) to 1/4” (M)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (3) 1/4” Compression Fittings
– 20ft. 12-Gauge Wire with Inline Fuse Holder
– 4” Strip of Continuous Grommet Material
– Accessory Airline
– Electrical Connections
Fill Rates:
– 2.5 GALLON TANK
0 to 145 PSI - 2 min. 20 sec. (± 05 sec.)
110 to 145 PSI - 48 sec. (± 03 sec.)
– 33″ X 12.5″ TIRE
0 to 30 PSI - 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI - 2 min. 05 sec. (± 05 sec.)
– 35″ X 12.5″ TIRE
0 to 30 PSI - 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI - 2 min. 45 sec. (± 10 sec.)
– 275/80R22.5 - RV TIRES
80 to 90 PSI - 30 sec. (± 05 sec.)
90 to 100 PSI - 3 min. 50 sec. (± 10 sec.)
110 to 130 PSI - 4 min. 37 sec. (± 15 sec.)
NOTE: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
