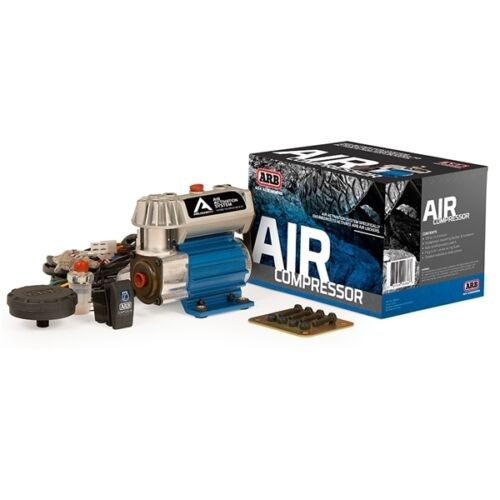

ARB - Compact On-Board 12V Air Compressor
This compact vehicle mounted Air Locker Air Activation System has been specifically designed to activate ARB Air Lockers, meeting the demanding needs of users. A smaller unit, it comes with a mounting bracket that allows versatile positioning and is sealed for moisture and dust resistance with quality components used for quiet operation and extra long life.
Designed to withstand harsh conditions. Each unit is individually tested for leaks, current draw and airflow at the factory before being packaged, and come with a comprehensive 2 year warranty.
Features:
• Small size with a multi-position mounting bracket
• Hard-anodized cylinder bore for reduced friction
• Fully sealed components for moisture and dust resistance
• Teflon impregnated carbon fiber piston seal for maximum trouble free life
• Pressure switch controlled air manifold system specially designed to suit all ARB Air Locker equipped vehicles
• Anodized mounting bracket dissipates motor heat and allows compressor to be repositioned 180°
• Anti-vibration and sound deadening grommets are integrated into the mount
• Compressor piston is equipped with a German-made high shock rated cylindrical roller bearing
• Relocatable splash resistant air filter assembly allows cleaner, cooler air supply and versatile waterproof air intake positioning
• High density and high flow washable sintered bronze air filter element
• All high strength cast aluminum construction
Specificatons:
• Supply Voltage: 12
• Current Draw (No Load): 5A
• Air Flow Under No Load: 25.0 L/m @ O KPa / 0.88 CFM @ O PSI
• Current Draw (Under Load): 6.5A
• Air Flow Under Load: 13.4 L/m @ 20 KPa / 0.47 CFM @ 29 PSI
• Duty Cycle % @ 22°C [72°F] (On Time/ Off Time): 35% - 21/39
