Fits the following applications:

17-19 Chevrolet Silverado 2500 3500 6.6L Diesel L5P
17-19 GMC Sierra 2500 3500 6.6L Diesel L5P

Fitment Alert:
Adequate clearence is needed between the front cross member/drop bracket to allow the removal and reinstallation of the Banks Cool Runner Oil Pan.

Part #: 35135-B

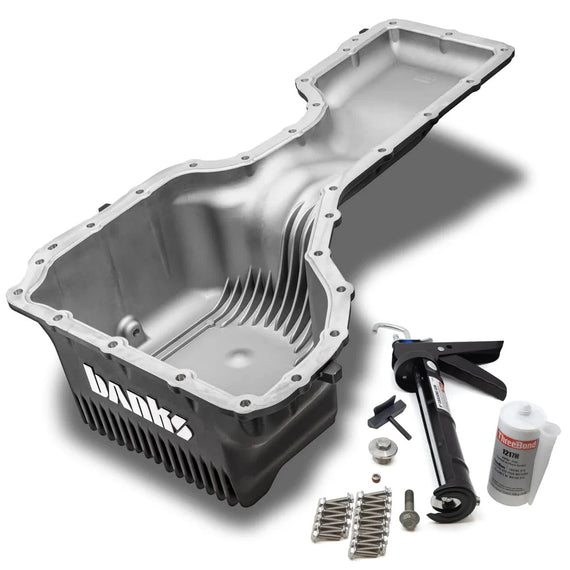

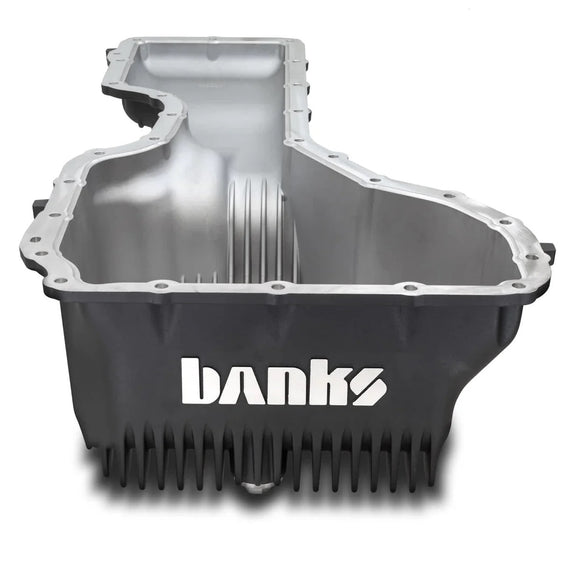

Banks Power CoolRunner Oil Pan

About This Product
Banks CoolRunner Oil Pan utilizes technology from our military engine program to extend oil life. The system rejects more heat and reduces aeration better than stock and all competitors. Two additional quarts of oil and Banks FlowThru Fins® aid in cooling. Unlike stock, the CoolRunner allows all fluid to drain during oil changes.

KEY FEATURES
Engineered for the best heat rejection, improved oil flow and full oil drainage
Adds 2 additional quarts of oil capacity

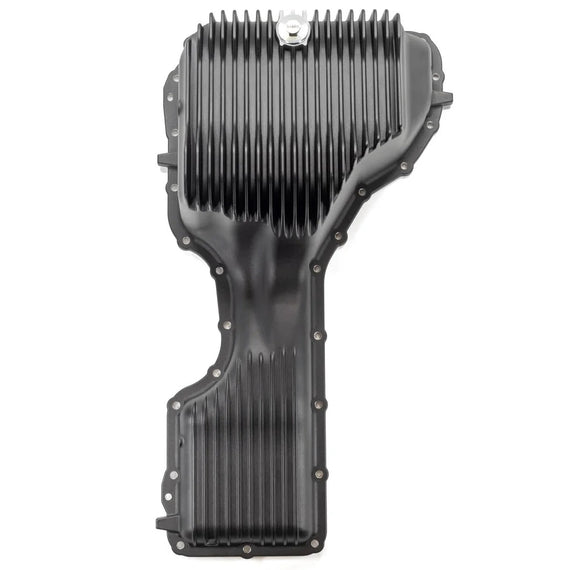

FlowThru Fins® efficiently transfer heat through the cover

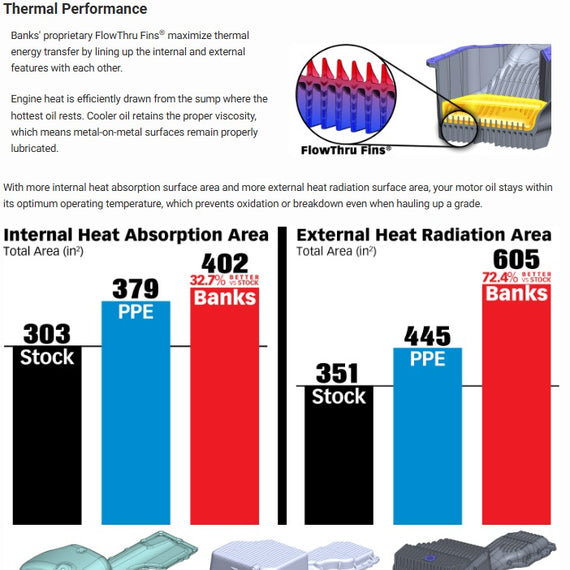

72.4% more cooling surface area than stock
Does not hang lower than factory front cross member
Unlike stock, allows full engine oil drainage

Fitment Alert – Lifted Trucks
Adequate clearence is needed between the front cross member/drop bracket to allow the removal and reinstallation of the Banks Cool Runner Oil Pan.

Lift kit drop brackets that mount to the front differential may require removal to provide access to the oil pan. Other drop brackets may contact the Cool Runner Oil Pan and prevent installation entirely when there is not enough clearence between the front differential mount and oil pan.

If the distance (H) from the lowest point of the OEM oil pan to the cross member is less than 10” you will not have enough space to remove the stock pan without removing the drop bracket. The bracket must be removed and reinstalled in order to provide adequate clearance to install a Banks Cool Runner Oil Pan around the oil pickup tube.

Reference your lift kit installation guide for specifics on how to remove the drop bracket as the torsion bars are under load.

Fluid Dynamics
Internal cooling fins run inline with the drain port with streamlined passageways
Anti-Cavitation dimple directly under oil pickup improves oil flow rate
Downward facing port eases oil change process
Low fluid aeration means longer fluid life

Technical Specs
1/8 NPT port for aux temp sensor

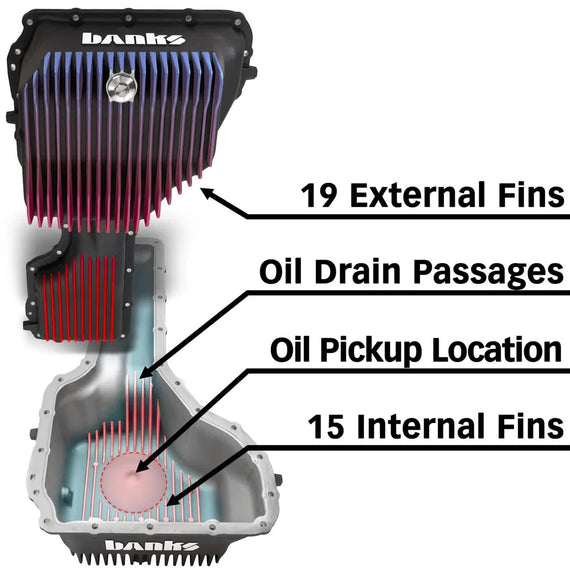

External heat radiation fin count: 19
Internal heat absorption fin count: 15
External heat radiation surface area: 605 in2
Internal heat absorption surface area: 402 in2
Fasteners: 26 x stainless steel M6 flange hex bolts
Material: A380 aluminum die-cast with CNC machined surfaces

Oil service
High temp resistant Ferrite Magnetic Drain Plug
Fully drains oil pickup tube for quicker oil changes
Banks recommends Amsoil 15W-40 Signature Series Max-Duty Synthetic Diesel Oil
Adds 2.0 Qts additional capacity(Check OEM Owners Manual)
