This is a brand new FASS No-Drop Titanium Signature Series Fuel System. We are an Authorized Dealer of FASS Fuel Systems and carry the full line of products.

Fits the following applications:

1999-2003 Ford F-250 / F-350 / F-450 7.3L Powerstroke Diesel
2003-2007 Ford F-250 / F-350 / F-450 6.0L Powerstroke Diesel

Part #: NDTSF14290F240G

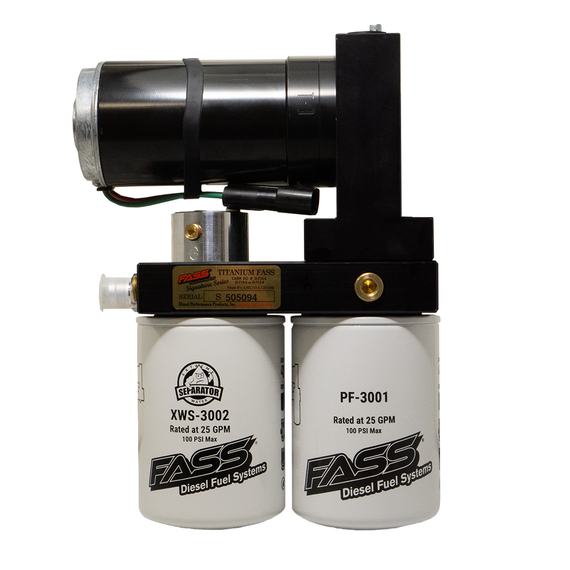

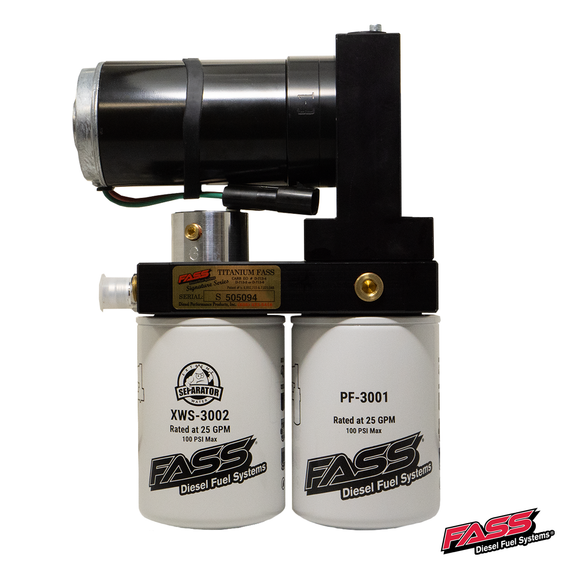

FASS No-Drop Titanium Signature 240G Fuel Pump

About This Product
Designed for the Ford applications listed above, this no-drop titanium signature series delivers 240 GPH of fuel flow for 900-1200 HP builds. It replaces the factory fuel supply path with a dedicated lift pump, filtration, water separation, and air/vapor removal to provide a cleaner, more consistent fuel supply to the injection system.

Fuel Delivery & Filtration
A 2-micron absolute Microglass particulate filter and an Extreme Water Separator help remove fine debris and water before fuel reaches critical injection components. The fuel-air separation design removes entrained air and vapor, while Mass Flow Return routes unused fuel through the filtration circuit and back to the tank for continuous fuel conditioning.

Performance & Protection
Clean, de-aerated fuel helps reduce fuel-related stress on the injection pump and injectors. The flow capacity supports the stated horsepower range while helping maintain a steady supply of filtered fuel. Actual performance, fuel economy, and drivability results depend on vehicle condition, tuning, and supporting modifications.

Quiet, Serviceable Design
Whisper Technology and Performance Radius Cuts use smooth internal flow passages and closely controlled pump components to reduce restriction and aftermarket pump noise. Filters have an expected 30,000-mile service interval. Registered systems are supported by a limited lifetime warranty.

Ford-Specific Installation
The supplied vehicle-specific bracket, wiring, plumbing, and hardware are intended for the listed Ford applications. Installation on an F-450 or cab-and-chassis application may require modification.

No-Drop Installation

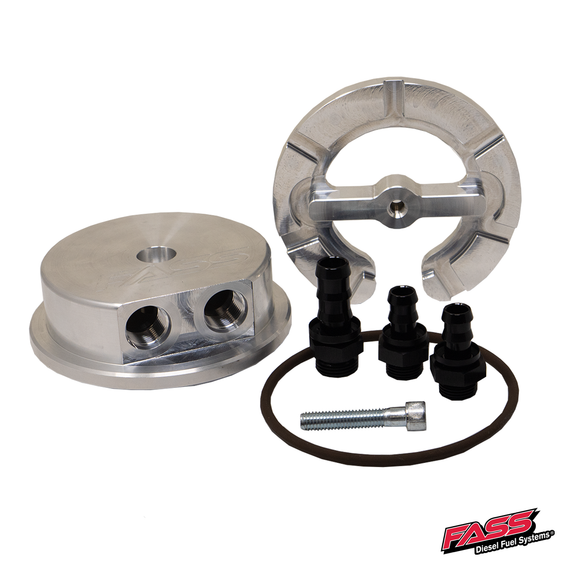

The included 6061-T6 billet-aluminum Single Bolt Fuel Sump supplies the system from the bottom of the tank. Its single-opening design combines the pickup and return routing so the tank does not have to be removed during installation.

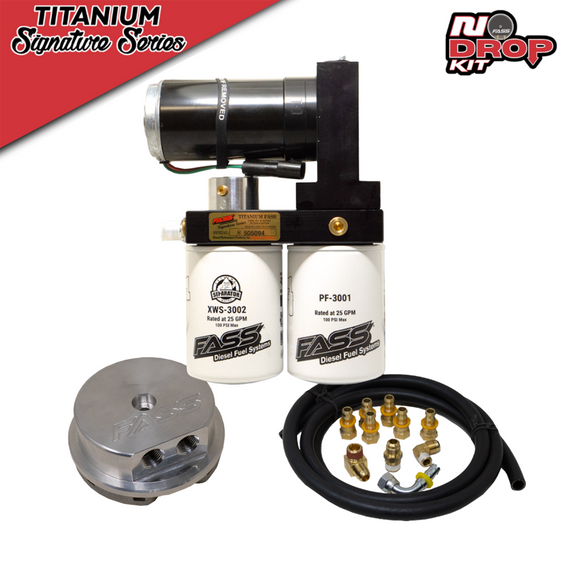

What Is Included
This kit includes the fuel pump and filter base, particulate filter, water separator, Ford-specific mounting hardware, wiring, plumbing, fittings, installation hardware, and the Single Bolt Fuel Sump.

KEY FEATURES
• 240 GPH Fuel System - 900-1200 HP
• 2-Micron Absolute Microglass Filtration
• Extreme Water Separation
• Air/Vapor Separation and Mass Flow Return
• Whisper Technology Quiet Operation
• Performance Radius Cuts for Smooth Fuel Flow
• Ford-Specific Mounting Hardware
• Single Bolt Fuel Sump - No Fuel-Tank Removal
• 30,000-Mile Filter-Life Expectation
• Limited Lifetime Warranty With Registration
