ICON Vehicle Dynamics 1.25-3" Lift Stage 3 Suspension Kit w/ Billet UCA & Triple Rate Rear Coil Springs

Overview
ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 3 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle feel through the range of travel. These coilovers are height adjustable from 1.25-3" of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The front differential drop brackets and ICON's specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load.

The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.0 Aluminum Series remote reservoir rear shocks provide improved cooling ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

FEATURES & BENEFITS
Vehicle specific tuned front and rear shocks for superior shock damping and control
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts

TECH INFO:
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00" Backspace / 25mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
APPLICATION NOTE #169: 4WD models require front differential drop part # 55160
APPLICATION NOTE #202: ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
APPLICATION NOTE #205: Included rear shocks are compatible with 0-1" of rear lift over stock
APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality.

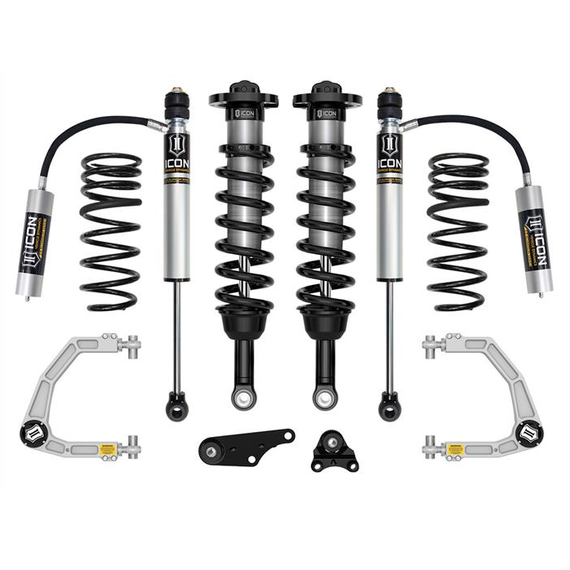

SYSTEM COMPONENTS:
58680 (QTY: 1) | 24 TACOMA 2.5 VS IR COILOVER KIT
58552DJ (QTY: 1) | 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
55160 (QTY: 1) | 24 TACOMA/24 LC250 DIFF DROP KIT
56518R (QTY: 2) | 24 TACOMA 0-1" REAR 2.0 VS RR
51213 (QTY: 1) | 24 TACOMA .5" LIFT TRIPLE RATE REAR COIL SPRING KIT
