Fits the following applications:
'18-Current Jeep Wrangler JL/JLU
'20-Current Jeep Gladiator JT
Part #: 78077001
Finish: E-coat & Powdercoat

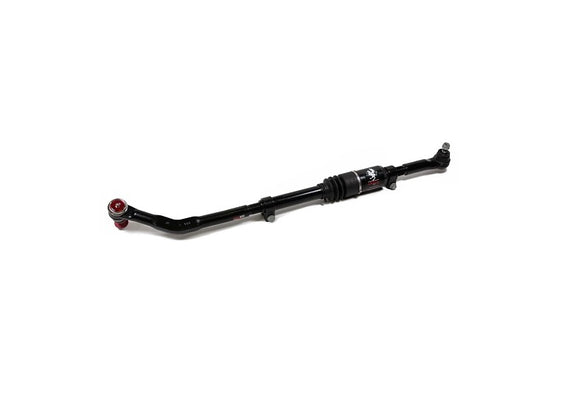

STEER SMARTS™ is proud to present our most EXTREME steering linkage “The YETI XD™" Series linkage equipped with our GRIFFIN XD™ Attenuator. We applied our 85 years of steering “lessons learned” to develop the strongest most durable linkage ever built for the Wrangler.
The YETI XD Draglinks are a complete bolt-on draglink. The YETI XD Draglinks install in just minutes and bolts to the factory tapered knuckle hole and the factory pitman arm hole.
30mm 1 1/2 Ton ball joints designed specifically for the JL.
Cold headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage.
Induction heat treated ball studs provide ultimate fatigue strength and superior off-road durability.
Steel on steel bearings provide exceptional ball joint wear resistance and robustness.
High-quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.
Powder coat over E-coat for a long-lasting appearance under harsh conditions.
External threads are e-coated for durability and long term serviceability.
Forged from medium carbon high hardenability steel and heat-treated for greater buckling, impact, and fatigue strength.
Forged from medium carbon high hardenability steel and heat-treated for even greater buckling, impact, and fatigue strength.
Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads.
Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkage.
GRIFFIN XD ATTENUATOR:
Reduces harsh and negative feedback to your steering wheel.
Draglink adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength.
Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts.
Designed with right-hand and left-hand threads for quick and easy adjustment when installed on the vehicle.
E-coated for a long lasting appearance under harsh conditions.
Internal threads and tube are also e-coated for long term serviceability.
Designed for the proper clearance to other chassis components to eliminate interferences.
The no-drill top mount will not work with OEM 17" wheels or wheels with OEM style offset/backspacing. Requires higher offset or spacers to clearance properly.
Draglink fits all left-hand drive JL Wrangler (models 2018+) and JT Gladiator (including Rubicon and Unlimited.
A 17” wheels minimum is recommended. 16" wheels with a maximum 4.5" backspacing might fit but not guaranteed.
Jeeps equipped with Anniversary Edition Factory Skid plates will need to slightly modify skid plate for clearance with GriffinXD
JT Mojave Gladiator is not currently compatible with the attenuator d/t clearance issues with the factory skid plate. It can be used if the skid plate is removed or if modified.
