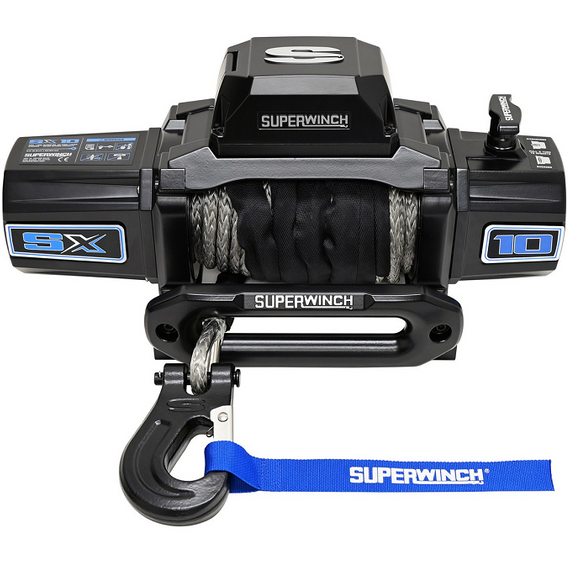

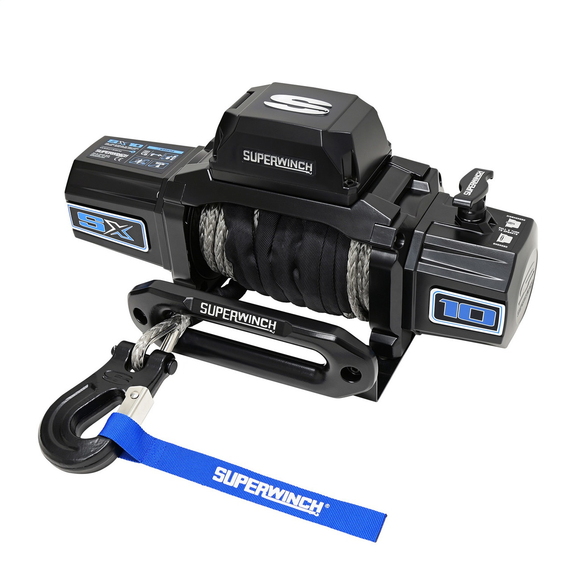

Superwinch SX Series SX10SR 10,000 lb. 12V Synthetic Rope Winch - Midnight Black

The SX10SR winch is engineered to provide users with the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8in diameter synthetic rope, and a 12ft lighted wired remote come standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class-leading features not found in other high-performance winches. Providing 10,000 lbs. of raw pulling power, the new SX10000SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for worry-free dustproof and waterproof operation, and a durable black powder-coated finish, this winch has it all.

12V DC 10,000 lbs rated line pull
5.5 HP sealed motor

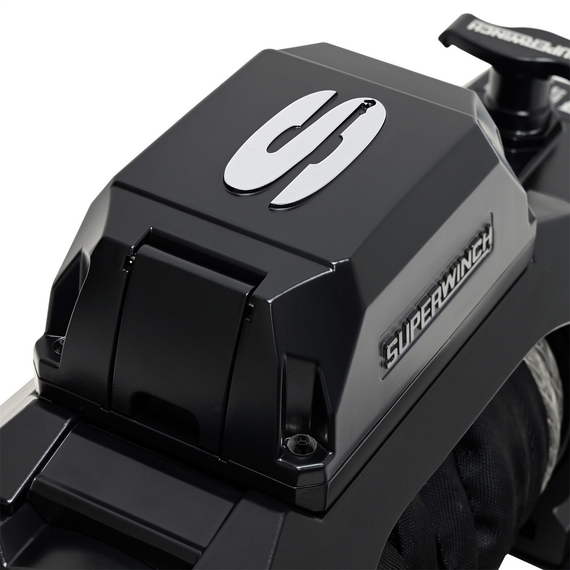

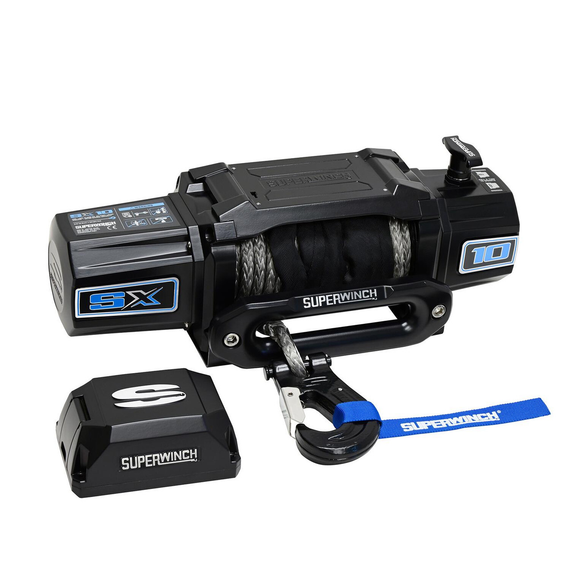

Relocatable die-cast aluminum control box
12 ft handheld wired remote features flashight with rechargeable lithium ion battery

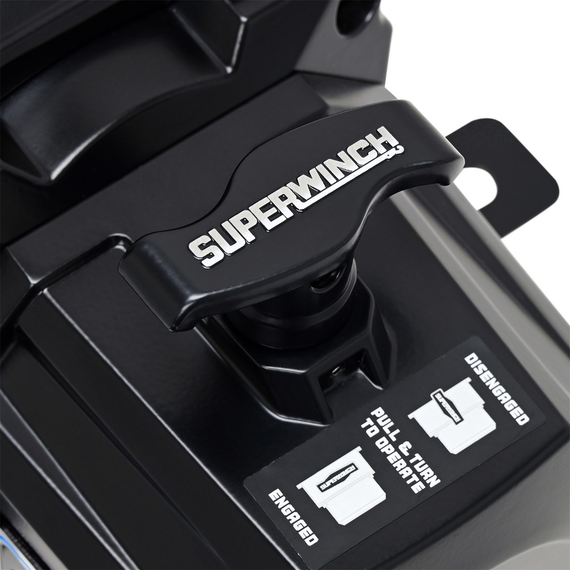

Pull-and turn clutch handle
3-stage planetary gearing with 218:1 ratio
Patented drumlight
3/8 in x 80 ft synthetic rope
Heavy duty clevis winch hook
Stainless steel 4-way roller fairlead
100% full load holding automatic mechanical brake
IP68-rated waterproof and dustproof winch

Specifications
Brake: Automatic, 100% Load Holding Mechanical
Clutch: Pull and Turn, Ergonomic Free Spooling
Dimensions: 22.04in L x 6.3in W x 9.67in H (559.8mm L x 160.02mm W x 245.62mm H)
Drum Diameter: 2.5in (64mm)
Drum Length: 8.75in (223mm)
Fairlead: Heavy Duty Stainless Steel 4-way Roller
Gear Ratio: 218:1
Gearing: 3-Stage Planetary
Hook: Heavy-Duty, Clevis Pinned Latched
Line Pull, 0 lbs: 85 Amps Motor Draw/27.3 FPM (8.32 MPM) Line Speed
Line Pull, 10,000 lbs: 363 Amps Motor Draw/4.5 FPM (1.37 MPM) Line Speed
Motor: Sealed 5.5 HP Series Wound
Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
Rated Line Pull: 10,000 lbs (4535.9 kg)
Remote: Sealed Ergonomic Hand-held with 12ft Coiled Cord
Rope: Synthetic 3/8in x 80ft (9.5mm x 24.4m)
Solenoid: Sealed Solenoid, relocatable
Warranty: Limited Lifetime Mechanical, 7 Year Limited Electrical
