VIAIR 150PSI 1.66CFM Constant Duty Onboard Air System - Universal Fit - 10007

Weight:

SKU:

Product type: Air Compressor

Availability:

$444.95

  • FAST & FREE SHIPPING ON ORDERS OVER 100$
  • GOT QUESTIONS? CALL US (623)-580-8887
  • CUSTOMER SATISFACTION GUARANTEE
  • 30 DAY MONEY BACK GUARANTEE

VIAIR Corporation - Constant Duty Onboard Air System

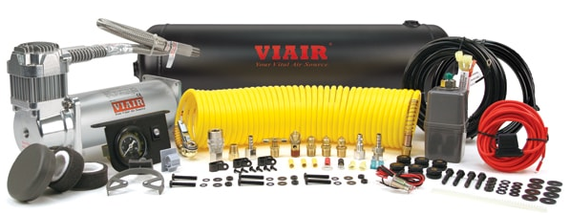

VIAIR’s Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle 450C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires. For up to 37" tires.

Fits the following applications:

Universal

Part #: 10007

Specifications:

– 12-Volt
– 1.66 CFM
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67

Features:

– 2.5 Gallon VIAIR Air Tank
– 450C VIAIR Compressor
– 35ft. Coil Hose with Tire Chuck
– Dash Panel Gauge with ON/OFF Switch
– Pressure Switch with Relay (110 PSI on, 145 PSI off)
– Reducer: 1/8” (F) to 1/4” (M)
– 1/4” Quick Connect Stud (F)
– 1/4” Quick Connect Coupler (F)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (3) 1/4” Compression Fittings
– 20ft. 12-Gauge Wire with Inline Fuse Holder
– 4” Strip of Continuous Grommet Material
– Accessory Airline
– Electrical Connections

Fill Rates:

– 2.5 GALLON TANK
0 to 145 PSI - 3 min. 02 sec. (± 10 sec.)
110 to 145 PSI - 59 sec. (± 05 sec.)

– 35″ X 12.5″ TIRE
0 to 30 PSI - 6 min. 55 sec. (± 15 sec.)
15 to 30 PSI - 3 min. 30 sec. (± 10 sec.)

– 37″ X 12.5″ TIRE
0 to 30 PSI - 7 min. 56 sec. (± 15 sec.)
15 to 30 PSI - 4 min. 09 sec. (± 10 sec.)

– 275/80R22.5 - RV TIRES
80 to 90 PSI - 30 sec. (± 05 sec.)
90 to 100 PSI - 3 min. 50 sec. (± 10 sec.)
110 to 130 PSI - 4 min. 37 sec. (± 15 sec.)

NOTE: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
