VIAIR 150PSI 3.28CFM Dual 450C Onboard 100% Duty Air System - Universal Fit - 20017

Weight:

SKU:

Product type: Air Compressor

Availability:

$744.95

  • FAST & FREE SHIPPING ON ORDERS OVER 100$
  • GOT QUESTIONS? CALL US (623)-580-8887
  • CUSTOMER SATISFACTION GUARANTEE
  • 30 DAY MONEY BACK GUARANTEE

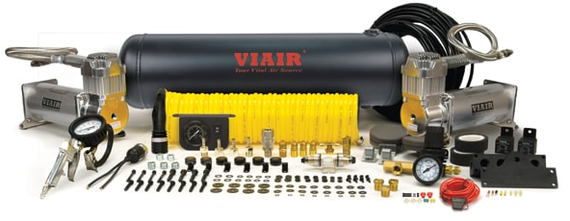

VIAIR Corporation - Dual 450C Onboard Air System

VIAIR’s Dual 450C Onboard Air System is a pre-packaged compressed air solution that provides two 450C, 100% duty cycle compressors, a 2.5 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more. For up to 40" tires.

Fits the following applications:

Universal

Part #: 20017


Specifications:

– 12-Volt
– 3.28 CFM
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 44 Amps
– Ingress Protection Rating: IP67

Features:

– 2.5 Gallon 150 PSI VIAIR Air Tank
– (2) 450C VIAIR Compressors
– 30ft. Coil Hose with Quick Connects
– Tire Inflation Gun with 200 PSI Gauge
– 0-220 PSI Pressure Regulator
– Sealed Pressure Switch (110 PSI on, 145 PSI off)
– 150 PSI Illuminated Dash Panel Gauge
– (2) 40-amp Relays
– Inline Fuse Holder
– 1/4” Quick Connect Coupler (M)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (2) 1/8” BSP to 1/4” NPT
– (3) 1/4” Compression Fittings
– 5 Pc. 1/4” NPT Plugs Kit
– 6-Port Billet Manifold with Mounting Bracket (1/4”)
– (2) 15ft. 1/4” Air Line Included
– Electrical Connections

Fill Rates:

– 2.5 GALLON TANK
0 to 145 PSI - 1 min. 30 sec. (± 05 sec.)
110 to 145 PSI - 31 sec. (± 03 sec.)

– 37″ X 12.5″ TIRE
0 to 30 PSI - 3 min. 50 sec. (± 10 sec.)
15 to 30 PSI - 1 min. 55 sec. (± 05 sec.)

– 40″ X 15.5″ TIRE
0 to 30 PSI - 4 min. 15 sec. (± 10 sec.)
15 to 30 PSI - 2 min. 15 sec. (± 05 sec.)

 NOTE: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
