VIAIR Corporation - Dual 400C Onboard Air System

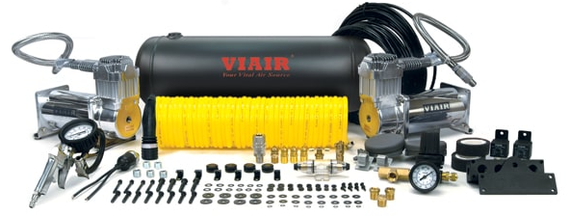

VIAIR’s Dual 400C Onboard Air System is a pre-packaged compressed air solution that provides two 400C, 33% duty cycle compressors, a 2.0 gallon air tank, inline pressure regulation, and all components needed to install a working system capable of inflating tires, managing air locking differentials, and more. For up to 40" tires.
Fits the following applications:
Universal
Part #: 20015
Specifications:
– 12-Volt
– 4.55 CFM
– Permanent Magnetic Motor
– Duty Cycle: 33% @ 100 PSI
– Max. Working Pressure: 150 PSI
– Max. Amp Draw: 59 Amps
– Ingress Protection Rating: IP67
Features:
– 2.0 Gallon 150 PSI VIAIR Air Tank
– (2) 400C VIAIR Compressors
– 30ft. Coil Hose with Quick Connects
– Tire Inflation Gun with 200 PSI Gauge
– 0-220 PSI Pressure Regulator
– Sealed Pressure Switch (110 PSI on, 145 PSI off)
– 150 PSI Illuminated Dash Panel Gauge
– (2) 40-amp Relays
– Inline Fuse Holder
– 1/4” Quick Connect Coupler (M)
– 1/4” 175 PSI Safety Valve
– 1/4” Drain Cock
– (2) 1/8” BSP to 1/4” NPT
– (3) 1/4” Compression Fittings
– 5 Pc. 1/4” NPT Plugs Kit
– 6-Port Billet Manifold with Mounting Bracket (1/4”)
– (2) 15ft. 1/4” Air Line Included
– Electrical Connections
Fill Rates:
– 2.0 GALLON TANK
0 to 145 PSI - 1 min. 00 sec. (± 05 sec.)
110 to 145 PSI - 20 sec. (± 03 sec.)
– 37″ X 12.5″ TIRE
0 to 30 PSI - 3 min. 25 sec. (± 10 sec.)
15 to 30 PSI - 1 min. 40 sec. (± 05 sec.)
– 40″ X 15.5″ TIRE
0 to 30 PSI - 3 min. 35 sec. (± 10 sec.)
15 to 30 PSI - 1 min. 45 sec. (± 05 sec.)
NOTE: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
