Vehicle Fitment:
2021+ Ford Bronco w/ Steel Bumper

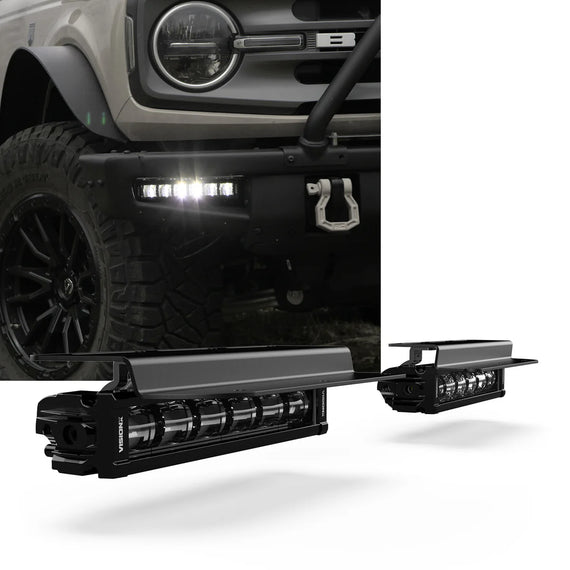

Vision X Fog Pocket 12" XPL Bar Light Kit

Part #: XIL-OESBF21FBXPL6SAE/9964331

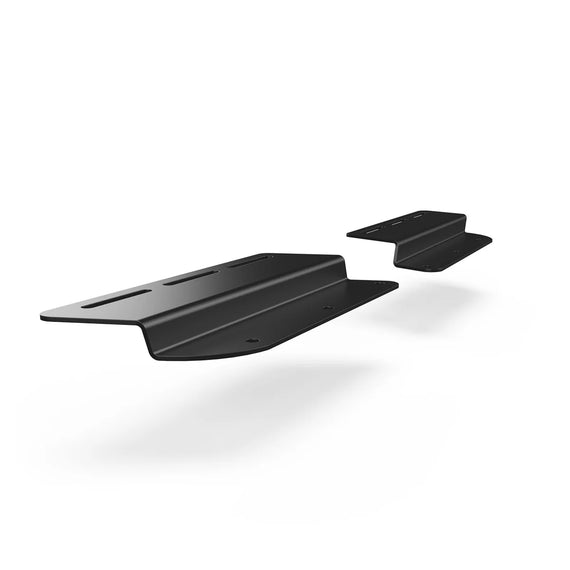

Our vehicle specific kits feature powder coated steel brackets that are thoughtfully engineered to carry serious weight while maintaining a minimal, understated look that virtually disappears once the lights are installed. This highly versatile mount has three slotted holes to enable the mounting of 1, 2, or 3 lights in the fog pocket cut-out in the factory steel bumper.

You can purchase the brackets only or choose from one of our pre-configured lighting bundles that include the mounts, lights, and vehicle-specific wiring to guarantee a quick and easy installation. The kits include upfitter harnesses that enable wiring directly to the Ford upfitter switches. For DURA PRO series lights, we provide a 3-pin upfitter harness that enables independent control of the DRL circuit and full driving beam circuit. For the CR Series kit a 2-pin split function harness allows the inner white driving lights to be independently switched from the outer yellow fog lights.

Kit Specifications:
Material: Laser Cut, CNC Bent Steel
Finish: Black Power Coat
Mounting Hole Size: M8
Light Compatibility: (DURA PRO 2, 4, 6) (CR-3, CR-4) (XPL 5”, 6”, 8”, 12”)
Fitment: Ford Bronco 2021+ (with OE steel bumper)

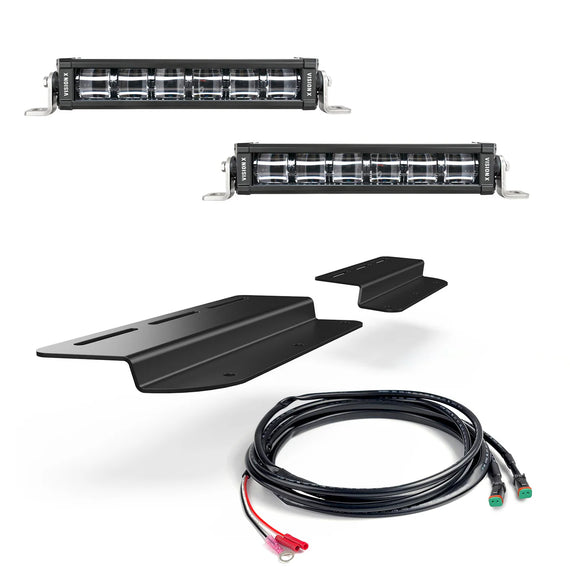

XPL Fog Light Bar Kit (XIL-OESBF21FBXPL6SAE)
(1x) Complete Mounting Kit
(1x) 2 into 1 Upfitter Wiring Harness (2-pin DT single-function)
(2x) 12” XPL SAE Compliant Fog Light Bar (white)
